Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type

Name: Mitsubishi Igbt Modules CM200DY12H 200A 1200V High Power Switching Use Insulated Type
Brand: MITSUBISHI
Price: 1 USD

Buy cheap Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type product

Brand Name : MITSUBISHI

Model Number : CM200DY-12H

Place of Origin : Original Factory

MOQ : 2 pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram,Google pay

Supply Ability : 2000pcs Per Mouth

Delivery Time : 5-7work days

Packaging Details : 10Pcs/Tube

Product Category : IGBT Modules

Certification : High Power Switching Use Insulated Type

Warranty : 90 Day

Shipping by : DHL\UPS\Fedex\EMS\HK Post

Package : Tray

Unit Weight : 15g

Contact Now

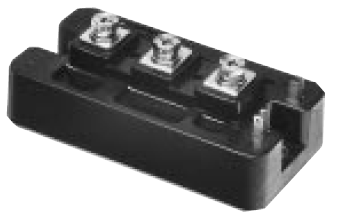

Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type
Description:
Mitsubishi IGBT Modules are designed for use in switching applications.Each module consists of two
IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery
free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate,offering
simplified system assembly and thermal management.
Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type
Applications

► AC Motor Control
► Motion/Servo Control
► UPS
► Welding Power Supplies
Specifications

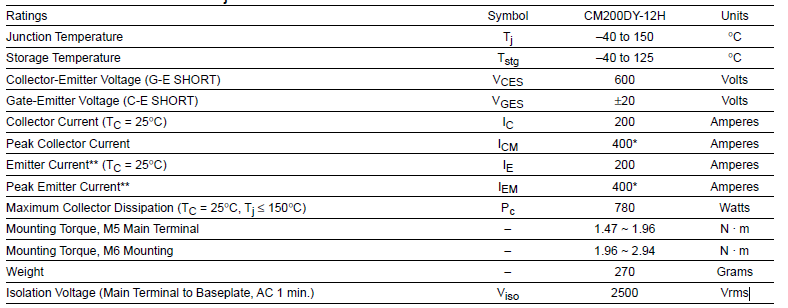

Absolute Maximum Ratings, Tj = 25 °C unless otherwise specified
Ratings Symbol CM200DY-12H Units
Junction Temperature Tj –40 to 150 °C
Storage Temperature Tstg –40 to 125 °C
Collector-Emitter Voltage (G-E SHORT) VCES 600 Volts
Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts
Collector Current (TC = 25°C) IC 200 Amperes
Peak Collector Current ICM 400* Amperes
Emitter Current** (TC = 25°C) IE 200 Amperes
Peak Emitter Current** IEM 400* Amperes
Maximum Collector Dissipation (TC = 25°C, Tj £ 150°C) Pc 780 Watts
Mounting Torque, M5 Main Terminal – 1.47 ~ 1.96 N · m
Mounting Torque, M6 Mounting – 1.96 ~ 2.94 N · m
Weight – 270 Grams
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Vrms
Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type
Features

► Low Drive Power
► Low VCE(sat)
► Discrete Super-Fast Recovery
► Free-Wheel Diode
► u High Frequency Operation
► Isolated Baseplate for Easy
► Heat Sinking
