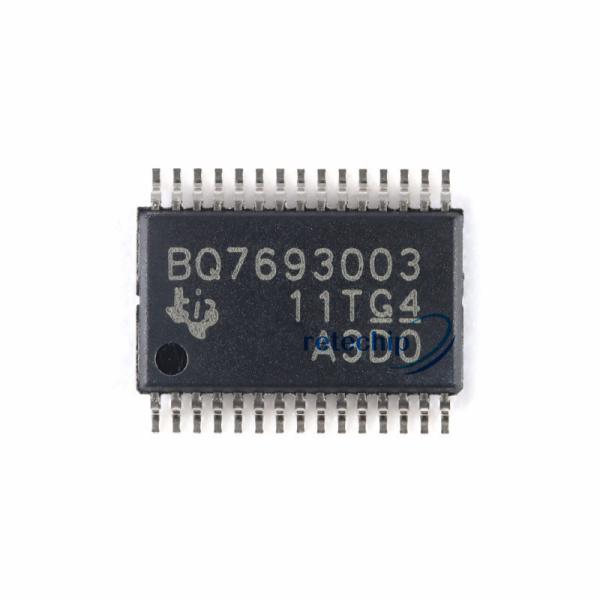

Battery Management IC BQ7693003DBTR 3.3 V 40 UA Li-Phosphate Battery Moniter
Applications
• Light electric vehicles (LEV): eBikes, eScooters, pedelec, and pedal-assist bicycles
• Power tools and garden tools
• Battery backup units (BBUS), energy storage systems (ESS), and uninterruptible power supply (UPS) systems
• Other industrial battery packs (≥10S)
Specifications
Product Attribute
Attribute Value
Texas Instruments
Product Category:
Battery Management
Battery Protection
Lithium Iron Phosphate (LiFePO4), Lithium-ion, Lithium Polymer
3.3 V
25 V
TSSOP-30
SMD/SMT
BQ76930
Reel
Maximum Operating Temperature:
+ 85 C
Minimum Operating Temperature:
- 40 C
Moisture Sensitive:
Yes
Operating Supply Current:
40 uA
Product Type:
Battery Management
Description
The BQ769x0 family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation, high-power systems, such as light electric vehicles, power tools, and uninterruptible power supplies. The BQ769x0 is designed with low power in mind: Subblocks within the IC may be enabled or disabled to control the overall chip current consumption, and a SHIP mode provides a simple way to put the pack into an ultra-low power state.
The BQ76920 device supports up to 5-series cells or typical 18-V packs, the BQ76930 handles up to 10-series cells or typical 36-V packs, and the BQ76940 works for up to 15-series cells or typical 48-V packs. A variety of battery chemistries may be managed with these AFEs, including Li-ion, Li-iron phosphate, and more. Through I2C, a host controller can use the BQ769x0 to implement many battery pack management functions, such as monitoring (cell voltages, pack current, pack temperatures), protection (controlling charge/discharge FETs), and balancing. Integrated A/D converters enable a purely digital readout of critical system parameters, with calibration handled in TI’s manufacturing process.
Features
• AFE monitoring features
– Pure digital interface
– Internal ADC measures cell voltage, die temperature, and external thermistor
– A separate, internal ADC measures pack current (coulomb counter)
– Directly supports up to three thermistors (103AT)
• Hardware protection features
– Overcurrent in Discharge (OCD)
– Short Circuit in Discharge (SCD)
– Overvoltage (OV)
– Undervoltage (UV)
– Secondary protector fault detection
• Additional features
– Integrated cell balancing FETs
– Charge, discharge low-side NCH FET drivers
– Alert interrupt to host microcontroller
– 2.5-V or 3.3-V output voltage regulator
– No EEPROM programming necessary
– High supply voltage absolute maximum (up to 108 V) – Simple I2C compatible interface (CRC option)
– Random cell connection tolerant
