ADS8688IDBTR Analog To Digital Converter Integrated Circuit IC Chip ADC 16bit SAR TSSOP38
Premium Products
ADS8688IDBTR Analog To Digital Converter Integrated Circuit IC Chip ADC 16bit SAR TSSOP38
1
2
3
4
Brand Name :Texas Instruments
Model Number :ADS8688IDBTR
Place of Origin :Original
MOQ :10 pcs
Price :Negotiate
Payment Terms :T/T, Western Union, MoneyGram
Supply Ability :20000pcs Per Mouth
Delivery Time :3-5 work days
Packaging Details :2000 Pcs/Reel
Product Category :Analog to Digital Converter
Description :ADC SAR ADC 16bits 8 ch 500 kSPS
Certification :Original Factory Pack
Warranty :180 Day
Shipping by :DHL\UPS\Fedex\EMS\HK Post\TNT
Unit Weight :0.005562g
Contact Now
ADS8688IDBTR IC Integrated Circuit Analog To Digital Converteric ADC 16bit SAR TSSOP38
Applications
• Power Automation
• Protection Relays
• PLC Analog Input Modules
Specifications
Product Attribute
Attribute Value
Texas Instruments
Product Category:
Analog to Digital Converters - ADC
ADS8688
TSSOP-38
16 bit
8 Channel
500 kS/s
Single-Ended
SAR
4.75 V to 5.25 V
1.65 V to 5.25 V
92 dB
- 40 C
+ 125 C
Reel
Power Consumption:
65 mW
Reference Voltage:
4.096 V
SINAD - Signal to Noise and Distortion Ratio:
91.5 dB
Description
The ADS8684 and ADS8688 are 4- and 8-channel, integrated data acquisition systems based on a 16-bit successive approximation (SAR) analog-to-digital converter (ADC), operating at a throughput of 500-kSPS. The devices feature integrated analog front-end circuitry for each input channel with overvoltage protection up to ±20 V, a 4- or 8-channel multiplexer with automatic and manual scanning modes, and an on-chip, 4.096-V reference with low temperature drift. Operating on a single 5-V analog supply, each input channel on the devices can support true bipolar input ranges of ±10.24 V, THD: –102 dB ±5.12 V, and ±2.56 V, as well as unipolar input ranges of 0 V to 10.24 V and 0 V to 5.12 V. The gain of the analog front-end for all input ranges is accurately trimmed to ensure a high dc precision. The input range selection is software-programmable and independent for each channel. The devices offer a 1-MΩ constant resistive input impedance irrespective of the selected input range. Simplified Block Diagram
The ADS8684 and ADS8688 offer a simple SPIcompatible serial interface to the digital host and also support daisy-chaining of multiple devices. The digital supply operates from 1.65 V to 5.25 V, enabling direct interface to a wide range of host controllers.
Features
• 16-Bit ADCs with Integrated Analog Front-End
• 4-, 8-Channel MUX with Auto and Manual Scan
• Channel-Independent Programmable Input Ranges:
– Bipolar: ±10.24 V, ±5.12 V, ±2.56 V
– Unipolar: 10.24 V, 5.12 V
• 5-V Analog Supply: 1.65-V to 5-V I/O Supply
• Constant Resistive Input Impedance: 1 MΩ
• Input Overvoltage Protection: Up to ±20 V
• On-Chip, 4.096-V Reference with Low Drift
• Excellent Performance:
– 500-kSPS Aggregate Throughput
– DNL: ±0.5 LSB; INL: ±0.75 LSB
– Low Drift for Gain Error and Offset
– SNR: 92 dB; THD: –102 dB
– Low Power: 65 mW
• AUX Input → Direct Connection to ADC Inputs
• Industrial Temperature Range: –40°C to 125°C

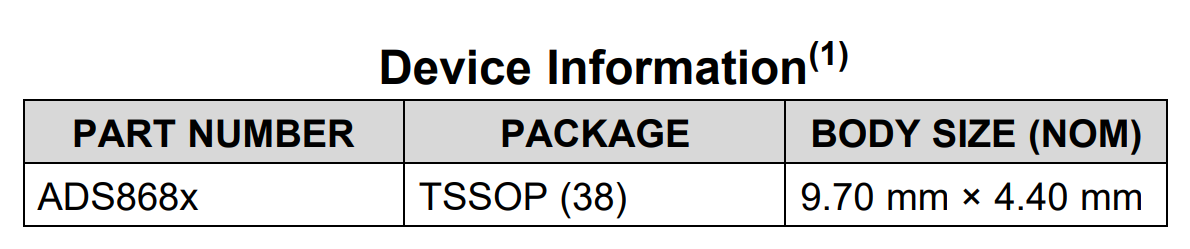

• TSSOP-38 Package (9.7 mm × 4.4 mm)
Trading Guides
Shipping
Delivery period
For in-stock parts, orders are estimated to ship out in 3 days. Once shipped, estimated delivery time depends on the below carriers you chose: DHL Express, 3-7 business days. DHL eCommerce,12-22 business days. FedEx International Priority, 3-7 business days EMS, 10-15 business days. Registered Air Mail, 15-30 business days.
Shipping rates
After confirming the order, we will evaluate the shipping cost based on the weight of the goods
Shipping option
We provide DHL, FedEx, EMS, SF Express, and Registered Air Mail international shipping.
Shipping tracking
We will notify you by email with tracking number once order is shipped.
Returning
warranty
Returning
Returns are normally accepted when completed within 30 days from date of shipment.Parts should be unused and in original packaging.Customer has to take charge for the shipping.
Warranty
All Retechip purchases come with a 30-day money-back return policy, This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation
Ordering
Payment
T/T,PayPal, Credit Card includes Visa, Master, American Express.
