ADS8689IPWR Integrated Circuit IC Chip 24bit Analog To Digital Converter Chip TSSOP16
Premium Products
ADS8689IPWR Integrated Circuit IC Chip 24bit Analog To Digital Converter Chip TSSOP16
1
2
3
4
Brand Name :Texas Instruments
Model Number :ADS8689IPWR
Place of Origin :China
MOQ :10 pcs
Price :Negotiate
Payment Terms :T/T, Western Union, MoneyGram
Supply Ability :10000pcs Per Mouth
Delivery Time :1-2 work days
Packaging Details :2000Pcs/Reel
Product Category :Analog to Digital Converter
Description :ADC 16-Bit, 100-kSPS, 1-Ch SAR ADC with programmable
Certification :Original Factory Pack
Warranty :90 Day
Shipping by :DHL\UPS\Fedex\EMS\HK Post\TNT
Unit Weight :0.006102g
Contact Now
ADS8689IPWR Integrated Circuit Chips 24bit Analog To Digital Converter Chip TSSOP16
Specifications
Product Attribute
Attribute Value
Texas Instruments
Product Category:
Analog to Digital Converters - ADC
ADS8689
TSSOP-16
16 bit
1 Channel
SPI
100 kS/s
Single-Ended
SAR
4.75 V to 5.25 V
1.65 V to 5.25 V
92 dB
- 40 C
+ 125 C
Features:
Oscillator, Over-Voltage Protection, PGA
Moisture Sensitive:
Yes
Power Consumption:
21 mW
Product Type:
ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio:
92 dB
Features
• 16-bit ADC with integrated analog front-end
• High speed:
– ADS8681: 1 MSPS
– ADS8685: 500 kSPS
– ADS8689: 100 kSPS
• Software programmable input ranges:
– Bipolar ranges: ±12.288 V, ±10.24 V, ±6.144 V, ±5.12 V, and ±2.56 V
– Unipolar ranges: 0 V
–12.288 V, 0 V
–10.24 V, 0 V–6.144 V, and 0 V
–5.12 V
• 5-V analog supply: 1.65-V to 5-V I/O supply
• Constant resistive input impedance ≥ 1 MΩ
• Input overvoltage protection: Up to ±20 V
• On-chip, 4.096-V reference with low drift
• Excellent performance:
– DNL: ±0.4 LSB; INL: ±0.5 LSB
– SNR: 92 dB; THD:
–107 dB
• ALARM → high, low threshold
• multiSP interface with daisy-chain
• Extended industrial temperature range: –40°C to +125°C
Applications
• Analog input modules
• Semiconductor test
• Servo drive control module

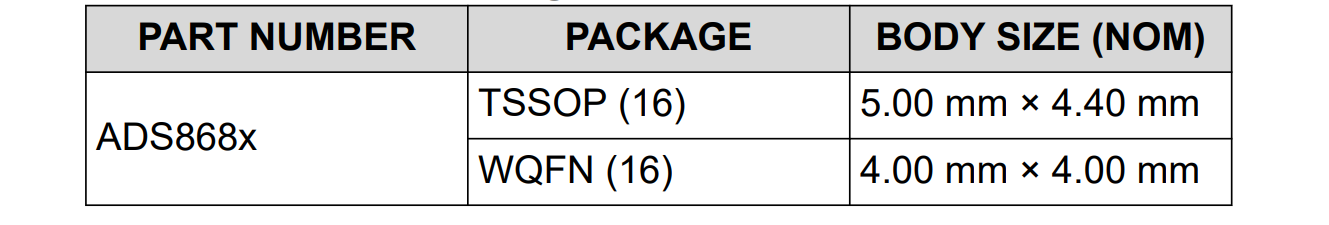

Description
The ADS8681, ADS8685, and ADS8689 belong to a family of integrated data acquisition system based on a successive approximation (SAR) analog-to-digital converter (ADC). The devices feature a high-speed, high-precision SAR ADC, integrated analog front-end (AFE) input driver circuit, overvoltage protection circuit up to ±20 V, and an on-chip 4.096-V reference with extremely low temperature drift.
The devices operate on a single 5-V analog supply, but support true bipolar input ranges of ±12.288 V, ±6.144 V, ±10.24 V, ±5.12 V, and ±2.56 V, as well as unipolar input ranges of 0 V to 12.288 V, 0 V to 10.24 V, 0 V to 6.144 V, and 0 V to 5.12 V. The gain and offset errors are accurately trimmed within the specified values for each input range to ensure high dc precision. The input range selection is done by software programming of the device internal registers. The devices offer a high resistive input impedance (≥ 1 MΩ) irrespective of the selected input range.
The multiSPI digital interface is backward-compatible to the traditional SPI protocol. Additionally, configurable features simplify interface to a wide range of host controllers.
