In general, 256Mb SDRAM devices (16 Meg x 4 x 4 banks, 8 Meg x 8 x 4 banks, and 4 Meg x 16 x 4 banks) are quad-bank DRAM that operate at 3.3V and include a synchronous interface. All signals are registered on the positive edge of the clock signal, CLK. Each of the x4’s 67,108,864-bit banks is organized as 8192 rows by 2048 columns by 4 bits. Each of the x8’s 67,108,864-bit banks is organized as 8192 rows by 1024 columns by 8 bits. Each of the x16’s 67,108,864-bit banks is organized as 8192 rows by 512 columns by 16 bits.
Read and write accesses to the SDRAM are burst-oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed se-quence. Accesses begin with the registration of an ACTIVE command, followed by a READ or WRITE command. The address bits registered coincident with the ACTIVE command are used to select the bank and row to be accessed (BA0 and BA1 select the bank, A[12:0] select the row). The address bits (x4: A[9:0], A11; x8: A[9:0]; x16: A[8:0]) reg-istered coincident with the READ or WRITE command are used to select the starting column location for the burst access.
Prior to normal operation, the SDRAM must be initialized. The following sections pro-vide detailed information covering device initialization, register definition, command descriptions, and device operation.

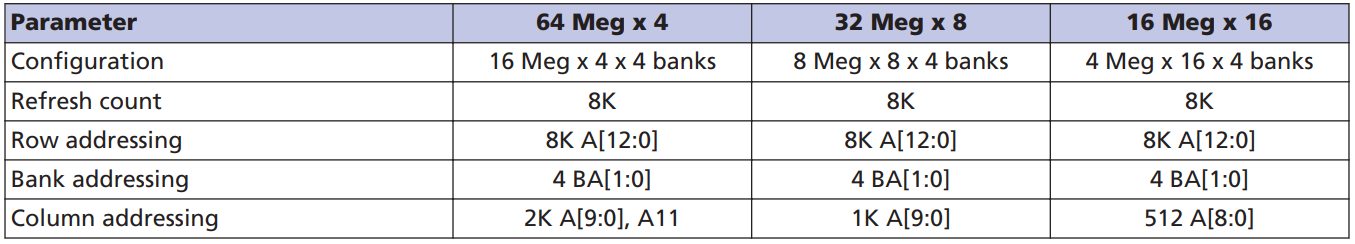

Address Table
Features
• PC100- and PC133-compliant
• Fully synchronous; all signals registered on positive edge of system clock
• Internal, pipelined operation; column address can be changed every clock cycle
• Internal banks for hiding row access/precharge
• Programmable burst lengths: 1, 2, 4, 8, or full page
• Auto precharge, includes concurrent auto precharge and auto refresh modes
• Self refresh mode (not available on AT devices)
• Auto refresh
– 64ms, 8192-cycle refresh (commercial and industrial)
– 16ms, 8192-cycle refresh (automotive)
• LVTTL-compatible inputs and outputs
• Single 3.3V ±0.3V power supply
