W25Q512JVEIQ NOR Flash Memory 512Mbit 2.7V to 3.6V 64Mx8 133MHz SPI Flash WSON-8
Specifications
Product Attribute
Attribute Value
WSON-8
512 Mbit
2.7 V
3.6 V
133 MHz
64 M x 8
8 bit
- 40 C
+ 85 C
Description
The W25Q512JV (512M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. All devices are offered in space-saving packages.

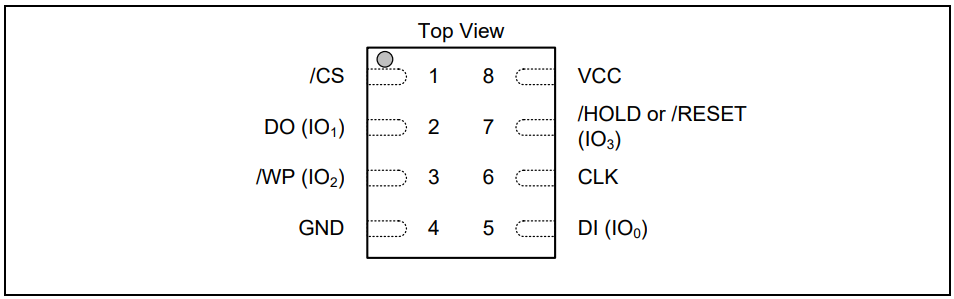

Pad Configuration 8x6-mm
W25Q512JV Pad Assignments, 8-pad WSON 8x6-mm (Package Code E)
Features
• New Family of SpiFlash Memories
– W25Q512JV: 512M-bit / 64M-byte
– Standard SPI: CLK, /CS, DI, DO
– Dual SPI: CLK, /CS, IO0, IO1,
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– 3 or 4-Byte Addressing Mode
– Software & Hardware Reset(1)
• Highest Performance Serial Flash
– 133MHz Standard/Dual/Quad SPI clocks
– 266/532MHz equivalent Dual/Quad SPI
– 66MB/S continuous data transfer rate
– Min. 100K Program-Erase cycles
– More than 20-year data retention
• Efficient “Continuous Read”
– Quad Peripheral Interface
– Allows true XIP (execute in place) operation
– Outperforms X16 Parallel Flash
