STGB10NC60KDT4 IGBT Power Transistor 600V 20A 65W N Channel For Motor Drives

  • 1
  • 2

Brand Name : ST

Model Number : STGB10NC60KDT4

Place of Origin : Original

MOQ : 5 pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs Per Day

Delivery Time : 1-3 work days

Packaging Details : 1000 Pcs/box

Type : IGBT Transistors

Description : 600V 20A 65W

Package : D2PAK-3

Packaging : Reel

Shipping by : DHL\UPS\Fedex\EMS\HK Post\TNT

Lead time : 1-3 Working days

Contact Now

STGB10NC60KDT4 STGW30NC60KD STGP19NC60KD STGW80V60DF Insulated Gate Bipolar Transistor

Applications

High frequency motor controls

SMPS and PFC in both hard switch and resonant topologies

Motor drives

Specifications



Product Attribute Attribute Value
Product Category: IGBT Transistors
Si
D2PAK-3
SMD/SMT
600 V
2.2 V
- 20 V, + 20 V
20 A
65 W
- 55 C
+ 150 C
Reel
Continuous Collector Current Ic Max: 20 A
Height: 4.6 mm
Length: 10.4 mm
Width: 9.35 mm
Unit Weight: 0.079014 oz


Description

These devices are very fast IGBTs developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. These devices are well-suited for resonant or soft-switching applications.

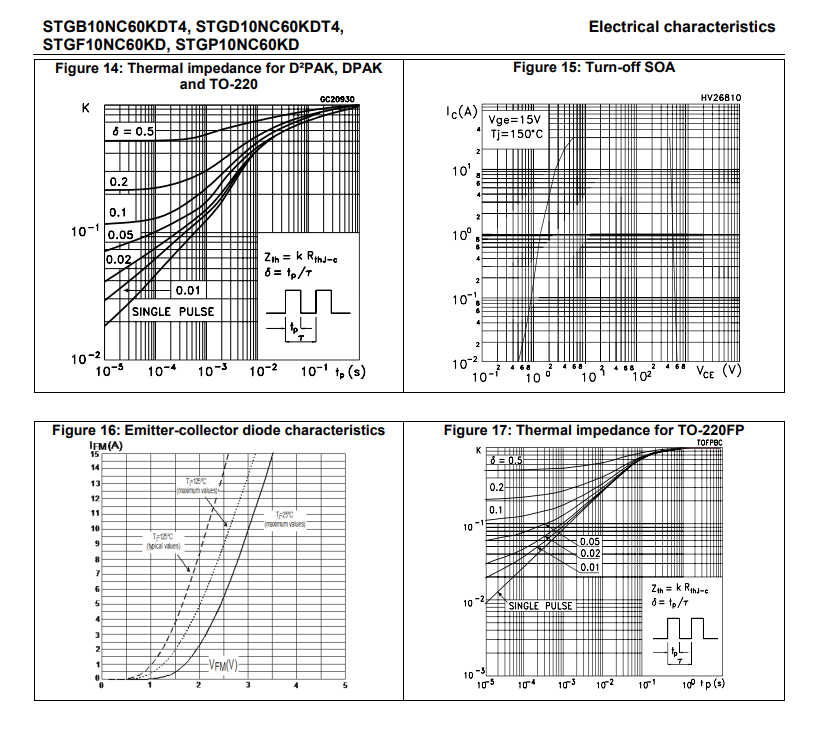

STGB10NC60KDT4 IGBT Power Transistor 600V 20A 65W N Channel For Motor Drives

Features

Lower on voltage drop (VCE(sat))

Lower CRES / CIES ratio (no cross-conduction susceptibility)

Very soft ultra fast recovery antiparallel diode

Short-circuit withstand time 10 μs
