UFD Series IGBT Power Transistor SGL160N60UFD 600V 160A 250W

Name: UFD Series IGBT Power Transistor SGL160N60UFD 600V 160A 250W
Brand: onsemi
Price: 1 USD

Buy cheap UFD Series IGBT Power Transistor SGL160N60UFD 600V 160A 250W product

Brand Name : onsemi

Model Number : SGL160N60UFD

Place of Origin : Original Factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20000pcs Per Month

Delivery Time : 2-3work days

Packaging Details : 450Pcs

Type : IGBT Transistor

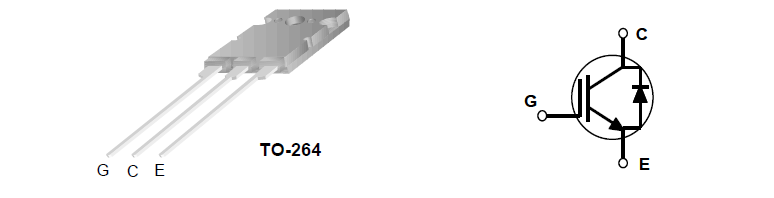

Description : IGBT 600V 160A 250W TO264

Shipping by : DHL\UPS\Fedex\EMS\HK Post\TNT

Lead time : 2-3Working days

Power - Max : 250 W

Mounting Style : Through Hole

Contact Now

IGBT Power Transistor SGL160N60UFD 600V 160A 250W UFD Series Gate Bipolar Transistors

Description

Fairchild's UFD series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and

switching losses.The UFD series is designed for applications such as motor control and general

inverters where high speed switching is a required feature.

UFD Series IGBT Power Transistor SGL160N60UFD 600V 160A 250W

Features

• High speed switching
• Low saturation voltage : VCE(sat) = 2.1 V @ IC = 80A
• High input impedance
• CO-PAK, IGBT with FRD: trr = 75nS (typ.)
Applications
AC & DC motor controls, general purpose inverters, robotics, servo controls, and power supplies.
Specifications

Symbol	Description	SGL160N60UFD	Units
VCES	Collector-Emitter Voltage	600	V
VGES	Gate-Emitter Voltage	± 20	V
IC	Collector Current @ TC = 25°C	160	A
IC	Collector Current @ TC = 100°C	50	A
ICM (1)	Pulsed Collector Current	300	A
IF	Diode Continuous Forward Current @ TC =100°C	25	A
IFM	Diode Maximum Forward Current	280	A
PD	Maximum Power Dissipation @ TC = 25°C	250	W
PD	Maximum Power Dissipation @ TC = 100°C	100	W
