TB6560AHQ TB6560AFG stepper motor driver chip 43W 4.5V to 34V 2 Output Driver IC
Specifications
Product Attribute
Attribute Value
Toshiba
Product Category:
Motor / Motion / Ignition Controllers &Drivers
2 Phase
4.5 V to 34 V
3 A
3 mA
- 30 C
+ 85 C
Through Hole
HZIP-25
Tray
Brand:
Toshiba
Load Voltage Rating:
34 V
Number of Outputs:
2 Output
Pd - Power Dissipation:
43 W
Description
PWM Chopper-Type Bipolar Driver IC for Stepping Motor Control
The TB6560AHQ/AFG is a PWM chopper-type stepping motor driver IC designed for sinusoidal-input microstep control of bipolar stepping motors. The TB6560AHQ/AFG can be used in applications that require 2-phase, 1-2-phase, 2W1-2-phase and 4W1-2-phase excitation modes. The TB6560AHQ/AFG is capable of low-vibration, high-performance forward and reverse driving of a two-phase bipolar stepping motor using only a clock signal.
Features
• Single-chip motor driver for sinusoidal microstep control of stepping motors
• High output withstand voltage due to the use of BiCD process: Ron (upper and lower sum) = TB6560AHQ: 0.6 Ω (typ.) TB6560AFG: 0.7 Ω (typ.)
• Forward and reverse rotation
• Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
• High output withstand voltage: VDSS = 40 V
• High output current: IOUT = TB6560AHQ: 3.5 A (peak) TB6560AFG: 2.5 A (peak)
• Packages: HZIP25-P-1.27 HQFP64-P-1010-0.50
• Internal pull-down resistors on inputs: 100 kΩ (typ.)
• Output monitor pin: MO current (IMO (max) = 1 mA)
• Reset and enable pins
• Thermal shutdown (TSD)
Trading Guide
Shipping
Delivery period
For in-stock parts, orders are estimated to ship out in 3 days. Once shipped, estimated delivery time depends on the below carriers you chose: DHL Express, 3-7 business days. DHL eCommerce,12-22 business days. FedEx International Priority, 3-7 business days EMS, 10-15 business days. Registered Air Mail, 15-30 business days.
Shipping rates
After confirming the order, we will evaluate the shipping cost based on the weight of the goods
Shipping option
We provide DHL, FedEx, EMS, SF Express, and Registered Air Mail international shipping.
Shipping tracking
We will notify you by email with tracking number once order is shipped.
Returning
warranty
Returning
Returns are normally accepted when completed within 30 days from date of shipment.Parts should be unused and in original packaging.Customer has to take charge for the shipping.
Warranty
All Retechip purchases come with a 30-day money-back return policy, This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation
Ordering
Payment
T/T,PayPal, Credit Card includes Visa, Master, American Express.

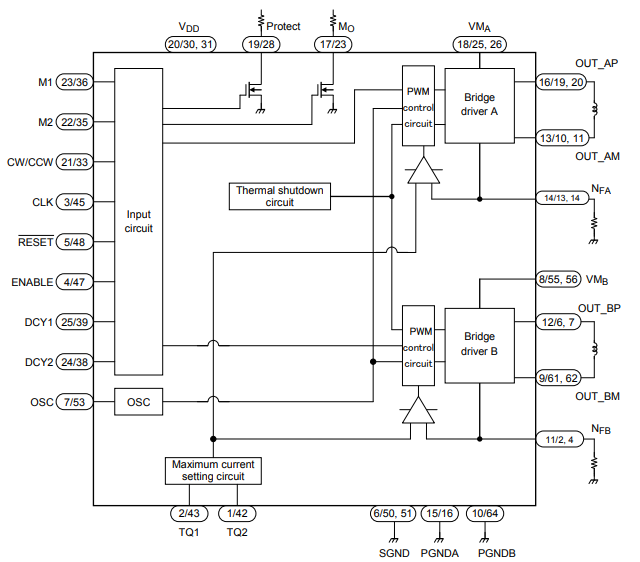

TB6560AHQ TB6560AFG stepper motor driver chip 43W 4.5V to 34V 2 Output Driver IC Images
