Motor Driver IC L293D Driver IC Chips Driver Push Pull 4 Channel 4.5v To 36v Power

Shenzhen Retechip Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Motor Driver IC L293D Driver IC Chips Driver Push Pull 4 Channel 4.5v To 36v Power

  • 1
  • 2
  • 3

Brand Name : STM

Model Number : L293D

Place of Origin : Original

MOQ : 5 pcs

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000pcs Per Mouth

Delivery Time : 2-3 work days

Packaging Details : 1000Pcs

Product Category : Motor / Motion / Ignition Controllers & Drivers

Description : Brushed DC Motor Drivers

Packaging : Tube

Warranty : 3 months

Shipping by : DHL\UPS\Fedex\EMS\HK Post\TNT

Subcategory : PMIC - Power Management IC

Contact Now

Motor Driver IC L293D Driver IC Chips Driver Push Pull 4 Channel 4.5v To 36v Power



Specifications



Product Attribute Attribute Value
STMicroelectronics
Product Category: Motor / Motion / Ignition Controllers & Drivers
Brushed DC Motor Drivers
Full Bridge
4.5 V to 36 V
600 mA
2 mA
- 40 C
+ 150 C
Through Hole
PowerDIP-16
Tube
Number of Outputs: 2 Output
Unit Weight: 0.009524 oz




Description



The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.

This device is suitable for use in switching applications at frequencies up to 5 kHz.

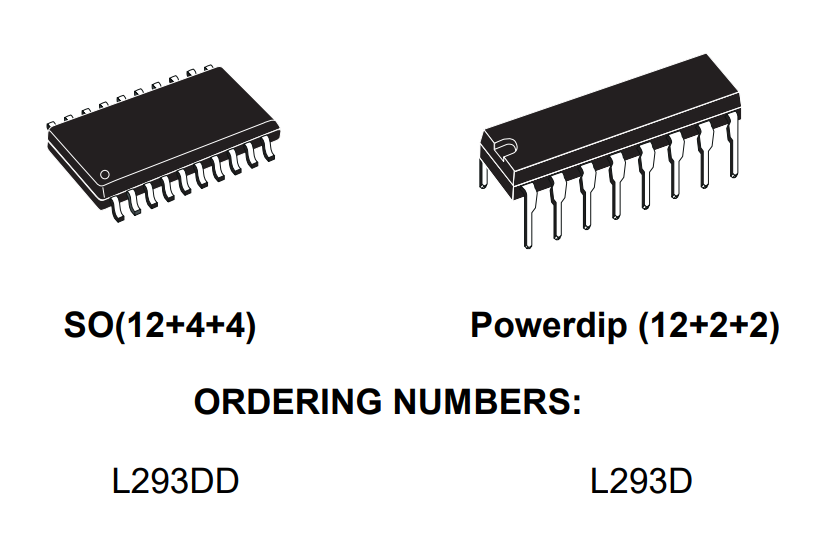

The L293D is assembled in a 16 lead plastic packaage which has 4 center pins connected together and used for heatsinking The L293DD is assembled in a 20 lead surface mount which has 8 center pins connected together and used for heatsinking.



Motor Driver IC L293D Driver IC Chips Driver Push Pull 4 Channel 4.5v To 36v Power



Features



♦ 600mA OUTPUT CURRENT CAPABILITY PER CHANNEL

♦ 1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL

♦ ENABLE FACILITY

♦ OVERTEMPERATURE PROTECTION

♦ LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)

♦ INTERNAL CLAMP DIODES
