Stepper Motor Driver Chip TB6552FNG TB6552FTG Dual-Bridge Driver Ic For Dc Motors
Specifications
Product Attribute
Attribute Value
Toshiba
Product Category:
Motor / Motion / Ignition Controllers & Drivers
Brushed DC Motor Drivers
Full Bridge
2.5 V to 13.5 V
1 A
900 uA
- 20 C
+ 85 C
SMD/SMT
Reel
Description

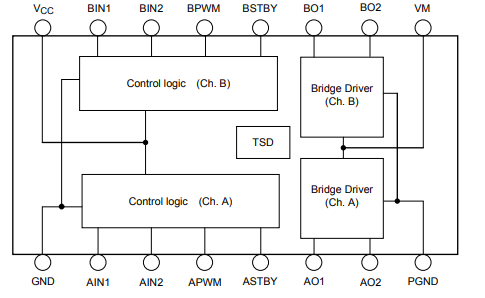

The TB6552FNG/FTG is a dual-bridge driver IC for DC motors with output transistors in an LD MOS structure with low ON-resistance. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode. A PWM drive system supports high heat efficiency driving.
Features
• Power supply voltage for motor: VM ≤ 15 V (max)
• Power supply voltage for control: VCC = 2.7 V to 6.0 V
• Output current: 1 A (max)
• Low ON resistor: 1.5 Ω (typ.) (Upper side + lower side combined @ VM = 5 V)
• Direct PWM control
• Standby system (power saving)
• CW/CCW/short brake/stop function modes
• Built-in thermal shutdown circuit
• Package: FNG-SSOP16/FTG-WQFN16
Trading Guide
Shipping
Delivery period
For in-stock parts, orders are estimated to ship out in 3 days. Once shipped, estimated delivery time depends on the below carriers you chose: DHL Express, 3-7 business days. DHL eCommerce,12-22 business days. FedEx International Priority, 3-7 business days EMS, 10-15 business days. Registered Air Mail, 15-30 business days.
Shipping rates
After confirming the order, we will evaluate the shipping cost based on the weight of the goods
Shipping option
We provide DHL, FedEx, EMS, SF Express, and Registered Air Mail international shipping.
Shipping tracking
We will notify you by email with tracking number once order is shipped.
Returning
warranty
Returning
Returns are normally accepted when completed within 30 days from date of shipment.Parts should be unused and in original packaging.Customer has to take charge for the shipping.
Warranty
All Retechip purchases come with a 30-day money-back return policy, This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation
Ordering
Payment
T/T,PayPal, Credit Card includes Visa, Master, American Express.
Stepper Motor Driver Chip TB6552FNG TB6552FTG Dual-Bridge Driver Ic For Dc Motors Images
